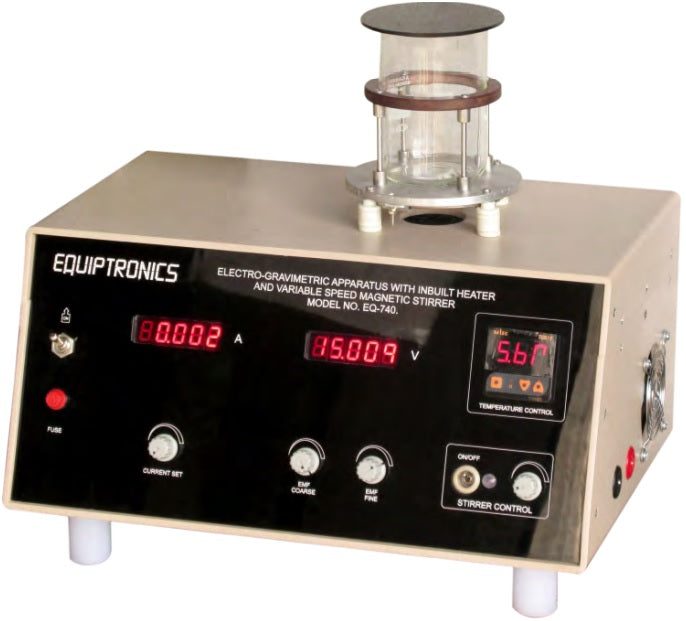

Equiptronics ELECTRO GRAVIMETRY APPARATUS

Name: Equiptronics ELECTRO GRAVIMETRY APPARATUS
Brand: Labmall
Price: 85000.00 INR
Availability: OutOfStock

Rs. 85,000.00

Sale Sold out

Shipping calculated at checkout.

EQ-740

Specification	Details

Model

EQ-740 Electro Gravimetry Apparatus

Purpose

Electrolytic separation & quantitative determination of metals by electro-deposition

Voltage Output Range

0–15 V DC (adjustable)

Current Output Range

0–10 A DC (adjustable)

EMF Readout

5-digit digital display (millivolt EMF)

Current Readout

5-digit digital display (milliamp resolution)

EMF Resolution

~1 mV

Current Resolution

~1 mA

EMF Accuracy

±1 mV

Current Accuracy

±1 mA

Protection

Short-circuit protection & current limit

Stirrer

Inbuilt variable-speed magnetic stirrer (≈0–400 rpm)

Body Material

Nano crystalline ABS™ (shock & rust-proof)

Accessories

Patch cords, dust-proof cover, special beaker assembly

Power Requirement

230 V ±10% AC @ 50 Hz, ~200 VA

Approx. Weight

~15 kg

Dimensions

~450 × 320 × 420 mm

Optional Extras

Hot plate & temperature sensor (upon request)

Special Electrodes

Requires platinum–iridium alloy cathode/anode (sold separately)
