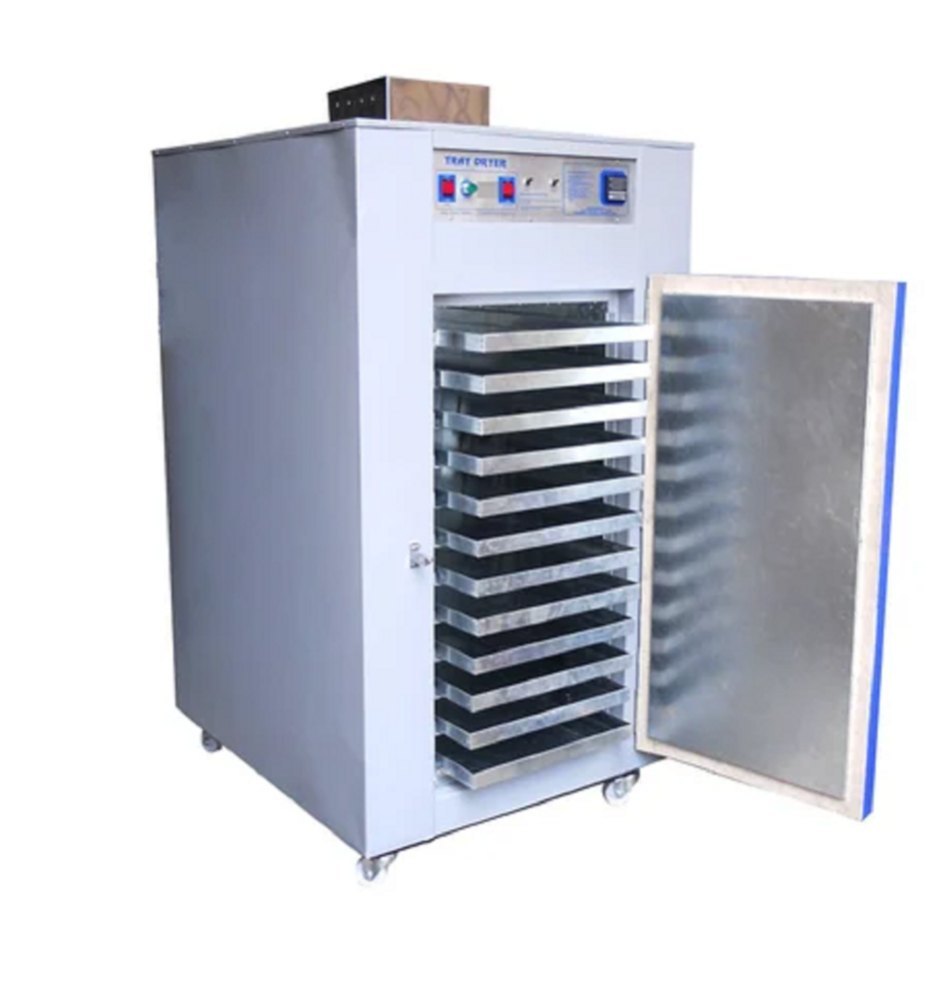

BTI-47 TRAY DRYER ( WITHOUT Trays )

• Temperature Range 50°c to 200°c
• No. of Doors: 1 Complete.
• The Construction is double walled, both walls made of CRCA Sheet.
• Interior is painted with Heat Resistant Aluminum Paint to withstand long duration Heating
cycles normally required in Industrial applications.
• Exterior body Powder coated.
• Gap Between the Walls filled with Glass wool insulation to avoid Heat loss
• Insulated Rigid Doors fitted with Strong Hinges with Ball Cage Locking arrangements.
• Brackets to support the heavily laden trays on the sides of Inner chamber.
• Air circulated by Heavy duty blower to maintain the temperature uniformity throughout the
working chamber.
• Tubular Air Heaters placed in the moving air path.
• Ventilation with adjustable opening on the top facilitates flowing the fumes or vapours
produced during the process.
• Control panel having Microprocessor based PID Temperature controller with PT-100
Temperature Sensor, Ammeter, Volt Meter, Phase Indicating lamps, Heater ON Indicators,
Booster Heater Switch, Motor Switch/Push Buttons.
• Tray Size : 16″ x 32″ x 1 . ″ (L X W X H)
• Unit works on either 230 V AC Single Phase 50 Hz. OR 415 V AC, 50 Hz. 3 Phase Supply
